Jaw Crusher Mobile Station parameters:

Model	Feeder model	Broken machine model	Belt machine specifications	Tire configuration	Extended belt conveyor	Generator	Processing capacity（t）	Power（kw）	Dimensions（mm）	Weight（t）
YPE69	GZD960*3800	PE600*900	650*7M	Combined with two axes	Optional	Optional	70-150	91.5	1320029004700	42
YPE75	GZD1100*4200	PE750*1060	800*9M	Combined with three axes	Optional	Optional	90-120	134	1500031005100	55
YPE912	GZD1300*4900	PE900*1200	1000*11M	Combined with four axes	Optional	Optional	150-300	146	1700033005600	72

Note: Parameters are subject to change without prior notice, please contact us.

Introduction to the type of mobile crushing station:

The squatting mobile crushing plant produced by Phoenix is ??based on the original equipment and greatly expands the concept of rough machining operations. Phoenix's design philosophy is to take the customer's position as the primary solution to eliminate the obstacles of crushing the site and environment to the customer's crushing operation, and provide customers with efficient and low-cost project operation hardware facilities, and achieved good results.

The principle of Jaw Crusher Mobile Station:

The stone material is uniformly transported into the crusher through the conveying equipment. After the crusher is crushed and crushed, the closed circuit system is formed by the vibrating screen to realize the circulating crushing of the material, and the finished material is output by the belt conveyor for continuous crushing operation. The 移動 type mobile crushing station can also remove the circular vibrating screen equipment according to the actual production needs, and realize the direct crushing of the materials directly. It is convenient and flexible to operate with other crushing equipment.

Jaw Crusher Mobile Station features:

1. The Jaw Crusher Mobile Station can reduce the transportation cost of materials, and can process materials on site without the need to move the materials away from the site for processing, which greatly reduces the transportation cost of materials.

2. The working line of the mobile jaw crushing station is relatively short. Different crusher equipments are installed on the movable chassis of the crushing station, with short wheelbase and small turning radius, which can be flexibly driven in ordinary roads and working areas.

3. The combination of crushing stations is flexible and adaptable. According to different crushing process requirements, it can be composed of “first crushing and then sieving”, or it can be composed of “first screening and then crushing” process. It can also be combined into coarse crushing and fine crushing two-stage crushing screening system according to actual needs, and can also be combined into The coarse crushing, medium crushing and fine crushing three-stage crushing and screening system can also operate independently and have great flexibility.

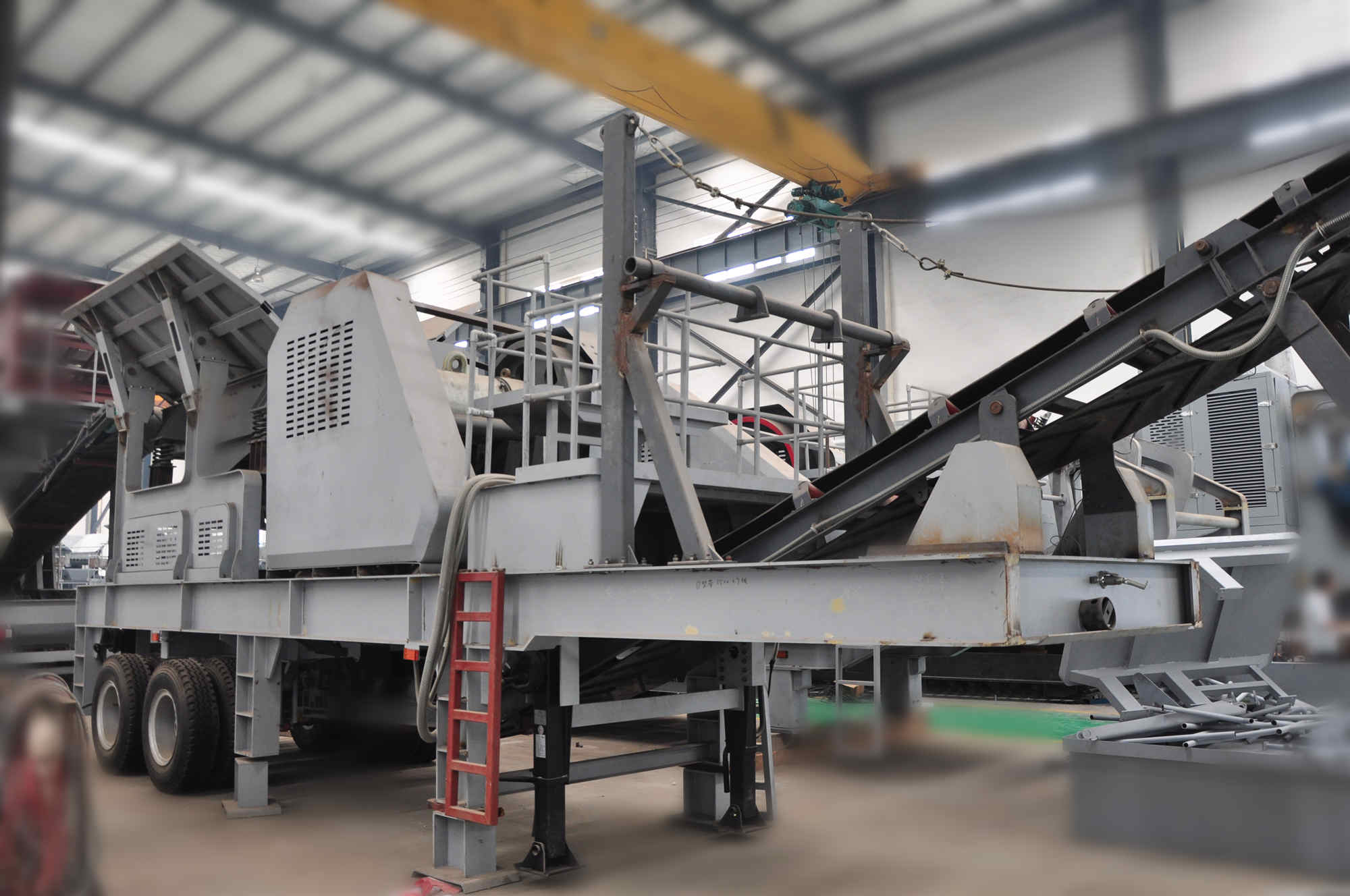

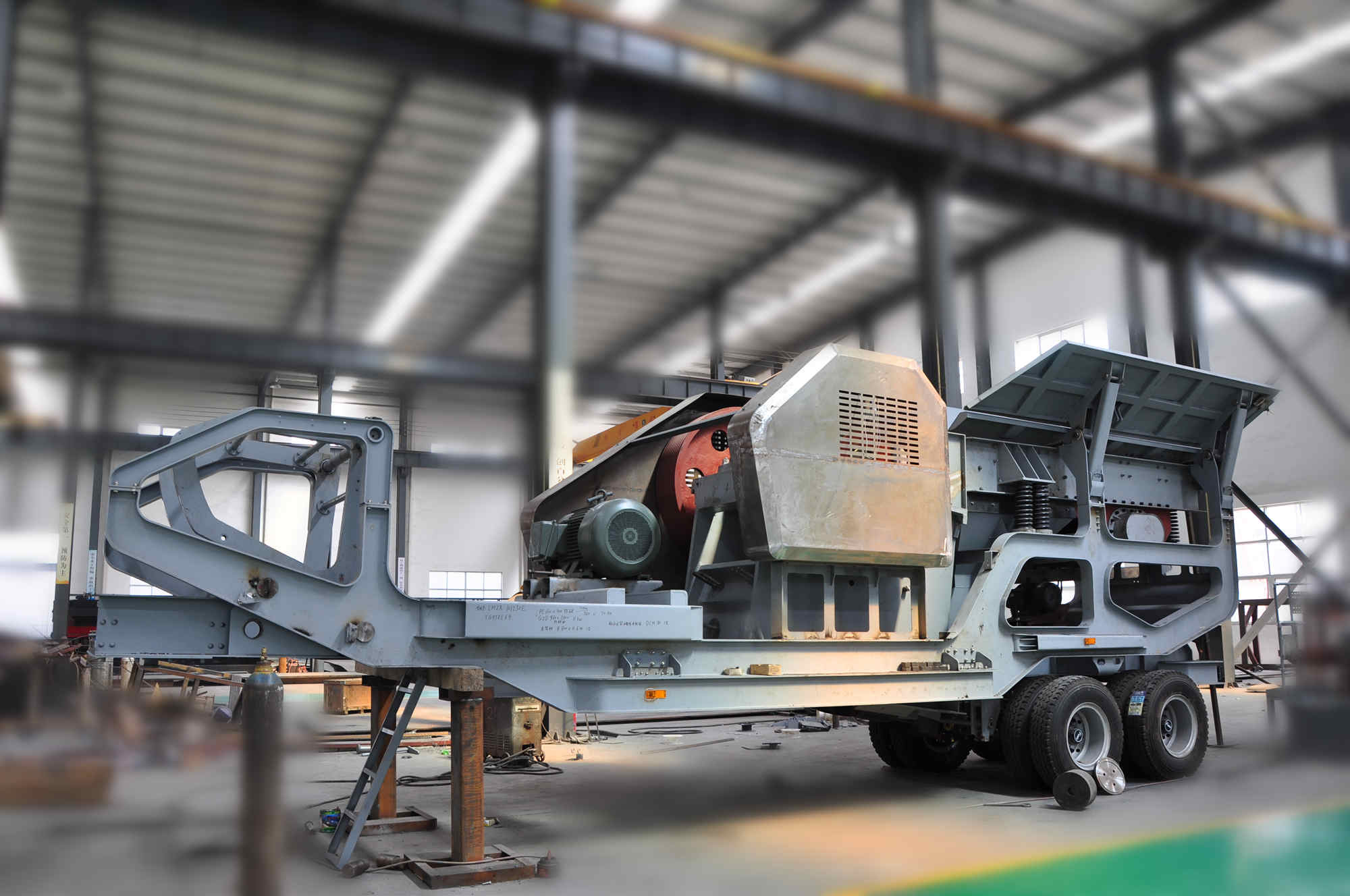

Picture of the mobile crushing station:
