Product parameters of multi-cylinder hydraulic cone crusher:

Model	MaxFeeding Size(mm)	Discharge Range(mm)	Motor Power (kW)	Capacity(tons/h)——opencircuit,closeddischarge(mm)
				9	13	16	19	22	26	31	38	51
SC150C	65	22~31	90	30-41	50-66	75-86	90-102	100-123	110-132	130-158
SC150M	135	13~26
SC150F	55	9~19
SC200C	180	22~31	160	55-62	70-93	100-140	130-170	165-195	175-220	195-230
SC200M	140	13~31
SC200F	60	9~22
SC280C	250	26~51	200	58-72	72-98	130-150	170-210	190-220	230-260	270-298	299-322	325-350
SC280M	160	16~38
SC280F	80	9~22
SC400C	300	32~63	315	120-145	140-180	200-240	230-300	270-340	295-368	310-410	350-450	460-550
SC400M	230	22~51
SC400F	80	13~26

Note: The production capacity in the table is open-circuit production.
The production capacity is related to the feeding mode, physical properties, crushing ratio and composition of crushed materials.

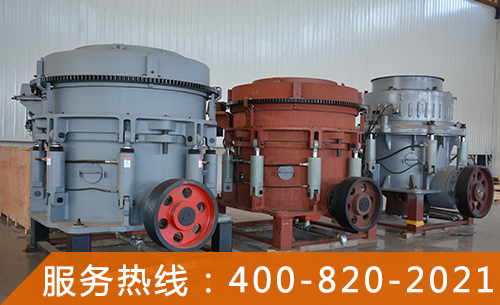

Multi-cylinder hydraulic cone crusher introduction:

The multi-cylinder hydraulic cone crusher is mainly used for secondary crushing or tertiary crushing in sand and gravel processing. The machine has advantages in crushing hard materials and fine crushing, and is widely used in the crushing of medium-hard materials such as river pebble, granite and basalt. Based on the traditional multi-cylinder hydraulic cone crusher spindle fixed, eccentric sleeved spindle rotating structure and laminating crushing principle, Phoenix has made a breakthrough optimization of the equipment structure, improving the equipment's performance and crushing capacity. The hydraulic lubrication system ensures that the equipment operates reliably and the operation control is smarter and more user-friendly.

Multi-cylinder hydraulic cone crusher principle:

The multi-cylinder hydraulic cone crusher drives the pulley or the coupling, the transmission shaft and the conical portion to rotate the eccentric shaft periodically under the axial line during operation. After the material enters the crushing chamber from the material inlet, it is crushed by the mutual impact of the eccentric shaft and the rolling wall. The hydraulic safety system can remove the faulty parts from the support sleeve and the fixed taper part by hydraulic pressure when the machine has an iron fault or a boring phenomenon, which greatly reduces the maintenance rate and improves the production efficiency while playing a good insurance function.

Multi-cylinder hydraulic cone crusher performance characteristics:

1. Structure upgrade is more efficient. The device further optimizes the design of the transmission components and the lubrication seal structure based on the structure of the spindle fixed and the eccentric sleeve rotating around the spindle. The multi-cylinder hydraulic cone crusher has strong bearing capacity, and the installed power reaches the same size in the same type of industry, with small volume, high efficiency and low noise.

2, the amount of processing is large. The combined design of crushing stroke, crushing speed and crushing chamber type, the output of multi-cylinder hydraulic cone crusher is 35%-60% higher than that of traditional cone crusher.

3. Multi-cylinder hydraulic cone crusher is laminated and broken. The material is crushed by the principle of laminating and crushing. By optimizing the equipment and cavity type, the laminating crushing efficiency is improved, the crushing efficiency is high, the wear of the wearing parts is low, the finished grain shape is cubic, and the fine particle content is high. Improve the quality of finished products and reduce the production costs of equipment and the entire system.

4. Full hydraulic control is accurate and reliable. The equipment is hydraulically operated from clear chamber, overload protection to adjustment and locking. The multi-cylinder hydraulic cone crusher works stably and reliably, and is easy to operate. The hydraulic system structure is fully optimized and upgraded, the adjustment control is more accurate, and the automatic protection response is more sensitive.

5. The crushing ratio is high. The SC series multi-cylinder hydraulic cone crusher has a significant advantage of high crushing ratio in the case of high material hardness and small particle size requirements.
