Product electronic sample: https://www.yunzhan365.com/bookcase/sbhc/

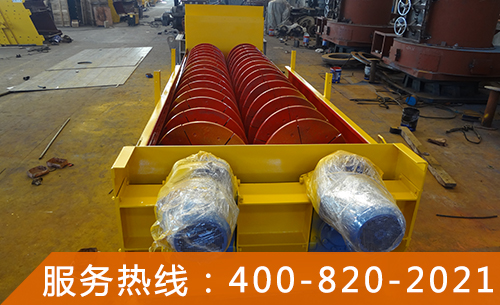

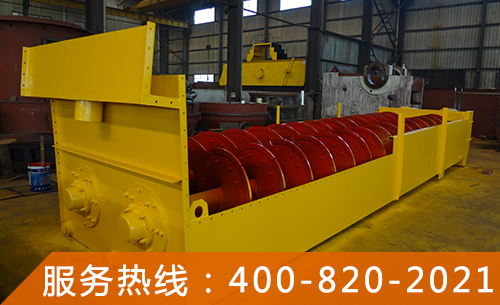

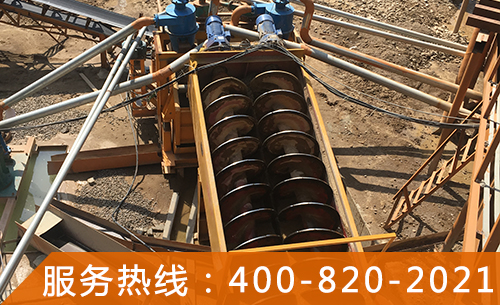

Introduction of double spiral sand washing machine:

The machine rotor of the XL double-screw sand washing machine produced by Phoenix adopts a central structure, and the spiral blade is mounted on the central shaft, and is connected to the central shaft by the reducer for work. An apparatus for mechanical classification by virtue of the fact that the specific gravity of the solid particles is different and thus the rate of sedimentation in the liquid is different. It is used in construction sites, sand and gravel plants, prefabricated plants and hydroelectric fields for the desilting and screening of sand and gravel. It can also be used for ore sorting operations.

Double spiral sand washing machine principle:

When the XL double-screw sand washer works, the motor rotates slowly through the V-belt, reducer and gear, and the impeller rotates slowly. The gravel has a feed trough into the washing tank, which is tumbling under the impeller and grinds each other to remove the covering sand. The impurities on the surface of the stone destroy the water vapor layer covering the sand at the same time to facilitate dehydration. At the same time, water is added to form a strong water flow, and the foreign matter with small impurity and small specific gravity is taken away in time, and discharged from the overflow port to complete the cleaning. The clean sand is taken away by the blades, and finally the sand is poured from the rotating impeller into the discharge chute to complete the cleaning of the sand.

Double spiral sand washing machine performance characteristics:

1. The sand washer has simple structure and stable performance. The impeller rotary bearing device is isolated from water and water-containing materials, which greatly avoids the bearing damage caused by water immersion, sand and pollutants.

2. When sand washing, the loss of medium fine sand and stone powder is very small, and the sand grading and fineness modulus of the washed building reaches the national standard of “construction sand” and “building pebbles and gravel”. The machine has almost no wearing parts except the filter.

3, Phoenix sand washing machine uses new technology, combined with the actual situation of sand and gravel industry at home and abroad to develop efficient sand washing equipment. The sand washing machine has high washing degree, reasonable structure, large output, and less sand loss during the sand washing process, especially the transmission part is separated from water and sand, so the failure rate of the sand washing machine is much lower than the current common sand washing machine. Machine is a suitable choice for upgrading the domestic sand washing industry. Sand washing machines are an essential equipment for sand and gravel production line equipment.

4, long service life, in rare cases need to be repaired, so it can greatly reduce costs.

Double spiral sand washing machine parameters:

Model	XL915	2XL915	XL1115	2XL1115
Helical diameter （mm）	915	915	1115	1115
Sink length（mm）	7585	7585	9782	9782
Feed size（mm）	≤ 10	≤ 10	≤ 10	≤ 10
Processing capacity （t/h）	100	200	175	350
Rotating speed （ r/min)	21	21	17	17
Motor Power （ kw ）	11	2*11	15	2*15
Water Consumption （t/h）	10-80	20-160	20-150	40-300
Dimensions（mm）	850028103600	84203760396	107839804170	1097052504720
Weight（t）	6.27	11.11	10.18	17.94
